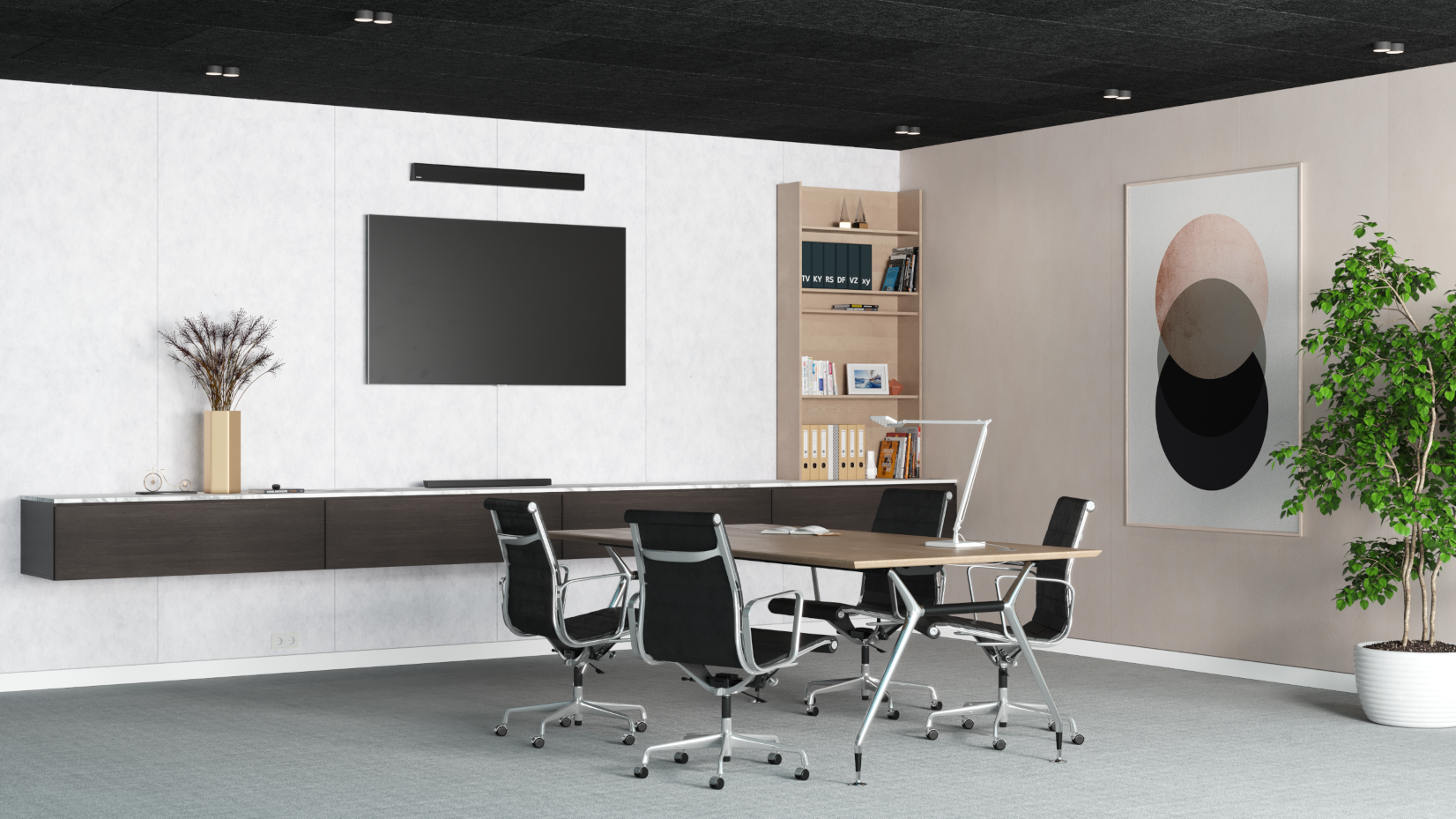

One of our most popular products from the dECO Collection, dECO Quiet Panel is engineered for premium sound absorption with a fabric finish. Choose from the selection of 22 colours from the dECO Velour range.



  • High performance sound absorptive acoustic board to control reverberate noise.
  • It has a self-healing pinable surface and is Velcro® receptive when finished in the dECO Velour colour range.
  • Lightweight and easy to handle panels make installation quick and simple.
  • Direct fixed with exposed edges or framed with dECO Edge aluminium trimming for large wall spaces or feature areas.

Click here to see how easy dECO Quiet Panel can be to install.

Key Specifications

Intended Use Interior wall, ceiling pannelling and pin boards
Thickness 9mm, 15mm, 25mm, 50mm (Tolerance: +/- 2mm)
Panel Size

2420mm x 1210mm

2720mm x 1210mm

Tolerance:

Length: +/- 10mm

Width: +/- 5mm

Fire Resistance Complies with AS 5637.1 and is tested to AS/ ISO 9705 and achieves Group 1-S SMOGRA less than 100 m2/s2 x 1000
Acoustic Performance

Tested to AS/ISO 354 and achieves

8mm NRC: 0.30 (Direct fix)

15mm NRC: 0.50 (Direct fix)

25mm NRC: 0.85 (Direct fix)

50mm NRC: 1.00 (Direct fix)

Warranty 15 Year Product Warranty
Framing System dECO Edge to suit 12mm, 25mm and 50mm dECO Quiet Panel available in Clear Anodised Silver, Matt Black and Flat White finish.

dECO Quiet Panel is Available in the following dECO Velour colours:

Downloads

Dont see what you need?

Please Contact Us for CAD drawings and document queries



Environmental Benefits and Credentials
