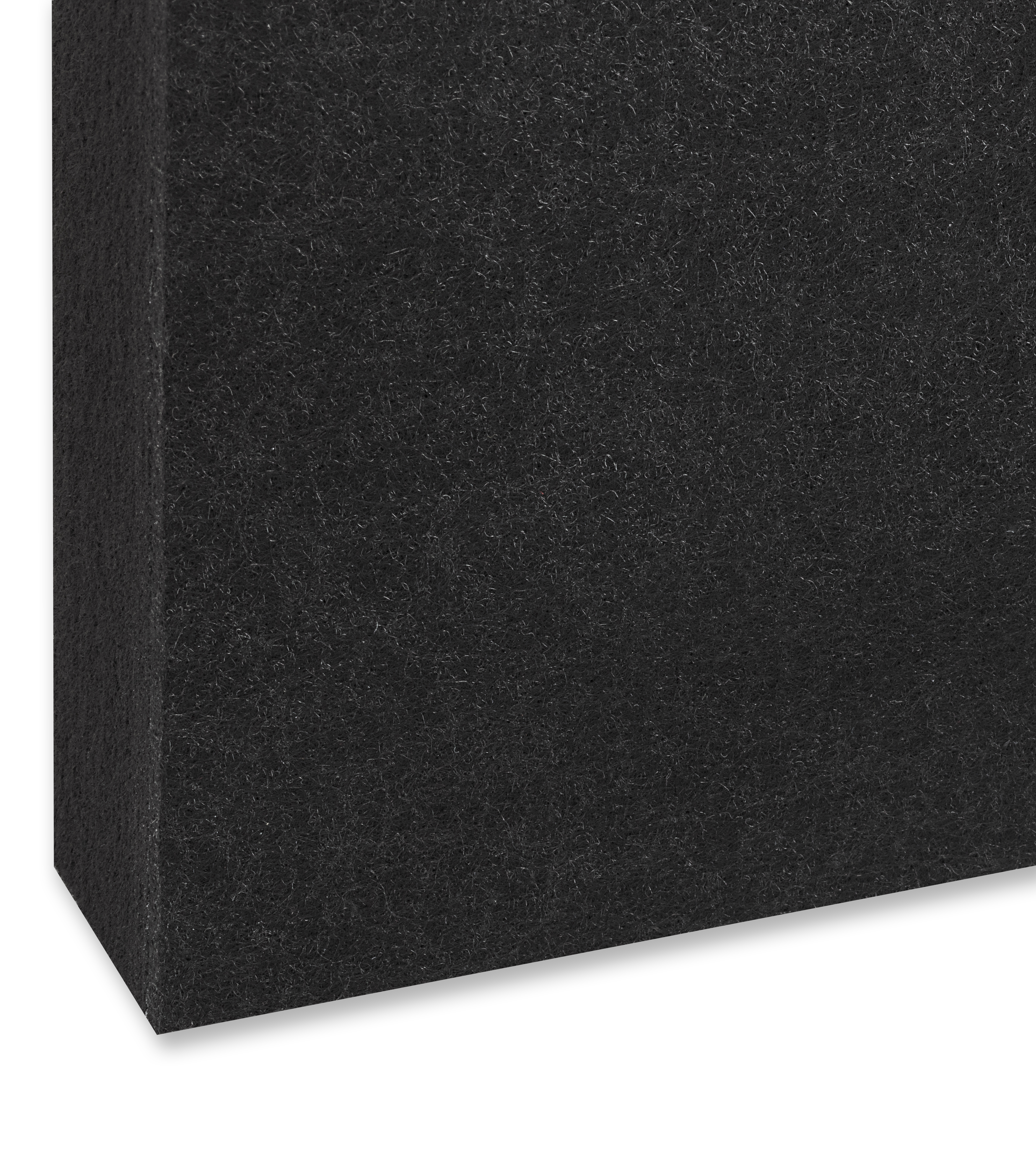

Get the Freedom to think clearly and collaborate freely thanks to these lightweight high performance acoustic boards. dECO Quiet Board is engineered for premium sound absorption.

  • High performance sound absorptive acoustic board to control reverberate noise.
  • Durable and resilient semi-ridged surface.
  • Lightweight and easy to handle boards make installation quick and simple.
  • Direct fixed with exposed edges or framed with dECO Edge aluminium trimming for large wall spaces or feature areas.



Key Specifications





Intended Use Acoustic cover-grade substrate for interior walls and ceilings
Thickness

7 mm, 12mm, 25mm, 50mm

(Tolerance: +/- 2mm)

Board Size

2420mm x 1210mm

2720mm x 1210mm

Tolerance:

Length: +/- 1omm

Width: +/- 5mm

Fire Resistance Complies with AS 5637.1 and is tested to AS/ ISO 9705 and achieves Group 1-S SMOGRA less than 100 m2/s2 x 1000
Acoustic Performance

Tested to AS/ISO 354 and achieves:

8mm NRC: 0.30 (Direct fix)

15mm NRC: 0.50 (Direct fix)

25mm NRC: 0.85 (Direct fix)

50mm NRC: 1.00 (Direct fix)

Warranty 15 Year Product Warranty
Framing System dECO Edge to suit 12mm, 25mm and 50mm dECO Quiet Panel available in Clear Anodised Silver, Matt Black and Flat White finish.
Colours Black and White

Board Surface variations may be present. If decorative finish is required, please use dECO Quite Panel







dECO Quiet Board is Available in black and white finishes:

Downloads

Dont see what you need?

Please Contact Us for CAD drawings and document queries



Environmental Benefits and Credentials
